The Learning Platform
The project learning platform takes you through the iterative design process using a variety of media - from example STL files and Tinkercad/Fusion 360 3D design tutorials to design method instructions, worksheets and more.

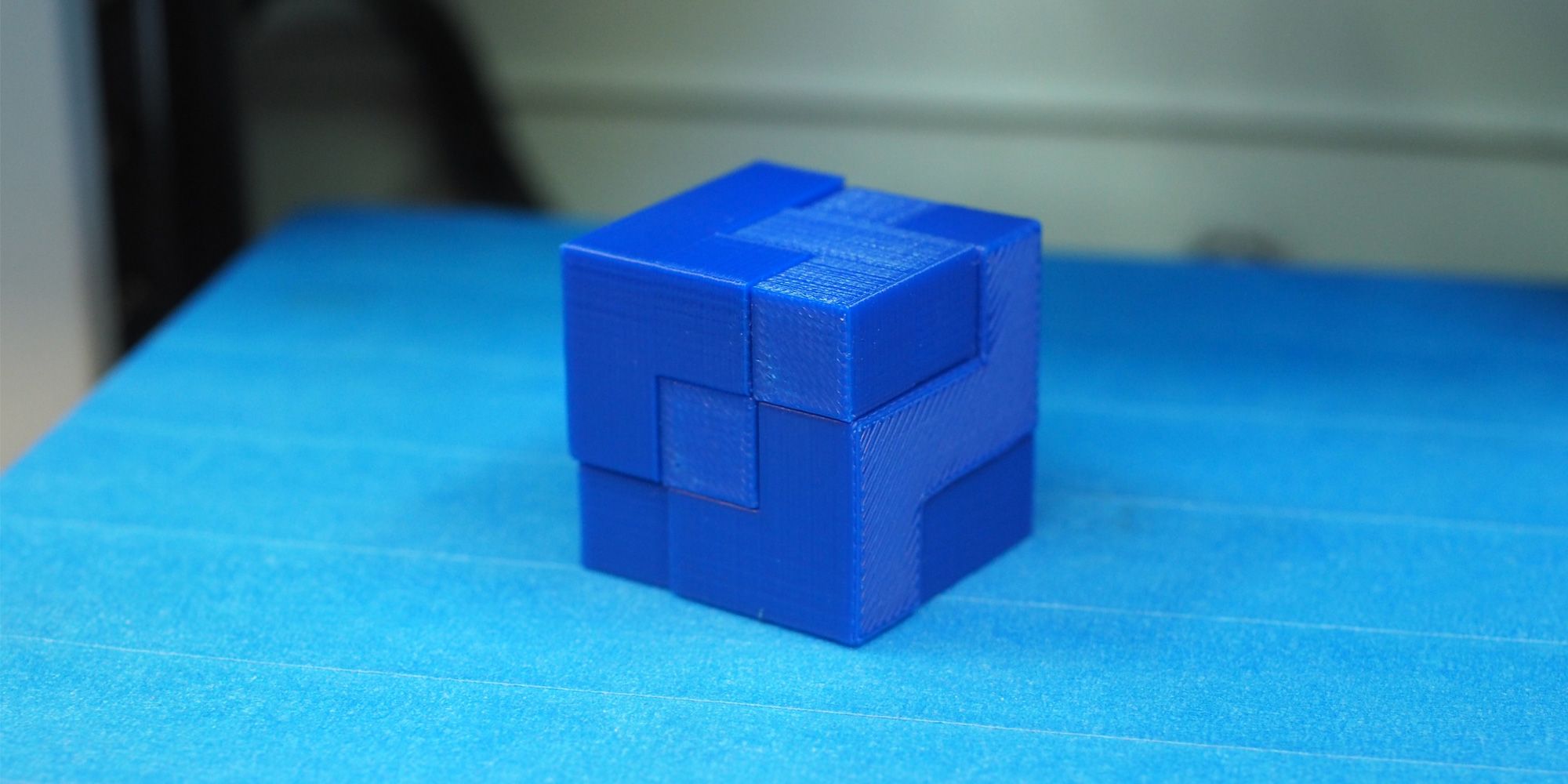

In this project, you’ll be designing a 3D printed puzzle cube. The process involves following a tutorial to design an initial prototype, which will then be tested and modified. You’ll then be challenged to create a case for the puzzle and a set of assembly instructions using isometric diagrams. View the project details below and start a free trial to PrintLab today!
Project Difficulty
Toggle
This project is rated as basic and is suitable for all those who have foundational skills in 3D design and 3D printing.
Project Length
Toggle
The estimated project length is 3 hours, excluding any 3D printing time. This estimate includes designing and making an initial puzzle cube plus time for testing and creating 1 improved version with an additional casing for the puzzle. The project can be run in shorter or longer periods of time depending on the number of iterations you choose to make. We recommend breaking the project up into multiple sessions (e.g. 3 x 1 hour sessions), which will allow you to 3D print necessary objects between sessions.
Equipment Required
Toggle
To participate in this project, you will require:
- A laptop or computer with either Tinkercad or Fusion 360 software (both free for educational and personal use).
- A software or web application to create a digital portfolio. We recommend using Google Slides as we provide a portfolio template in this format.
- Access to a 3D printer and 3D printing material.
- A device to capture images of your design process to insert into the project portfolio.
Additional materials may be required depending on the design methods you use when developing your solution.
The Portfolio

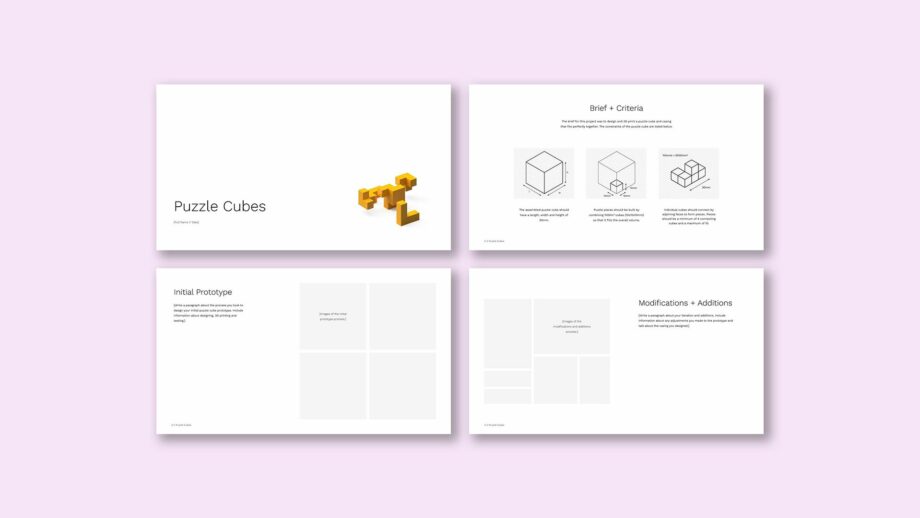

As you move through each stage of the project, we guide you in filling in a Google Slides template to document your design process - resulting in a beautiful and professional portfolio of work.
The Outcome
Our teaching methodology is focused around creative freedom. By using various design methods, you'll learn how to create a 3D printed puzzle cube and case that's completely unique!
Teacher Resources

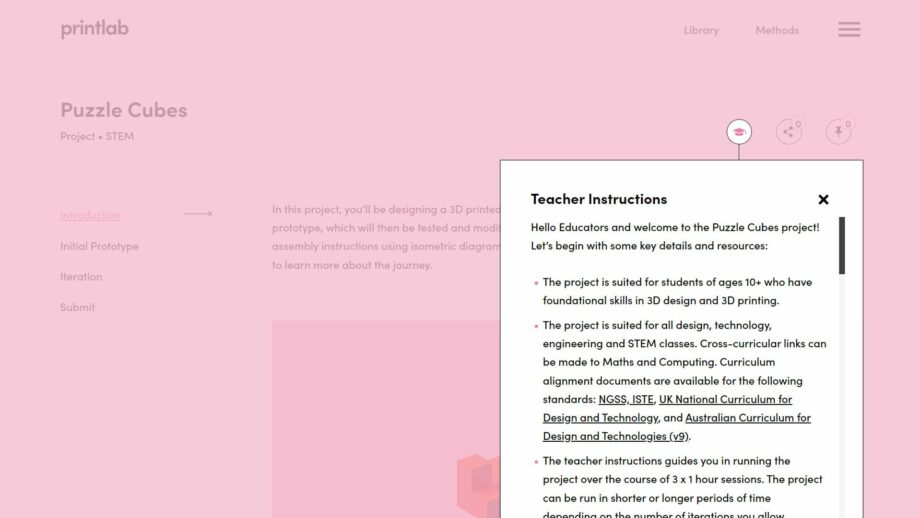

With our education licenses, you can generate a share link to give your students access to the project learning platform. Each section of the platform also has a teacher instructions tab, which provides you with step-by-step lesson plan instructions, curriculum alignment resources and an assessment rubric.
Ready to Get Started?
This project is available to subscribers of PrintLab. Learn more about our license options and start a free trial today to access a whole range of resources across the fields of 3D printing, 3D design, assistive technology, product design and STEM.
Start a Free Trial to PrintLab
